Tools and accessories for Geberit PE & Geberit Silent-db20
The pipes and fittings in the Geberit PE and Geberit Silent-db20 ranges can be used in a variety of applications. The piping systems are welded, creating a strong and durable connection.

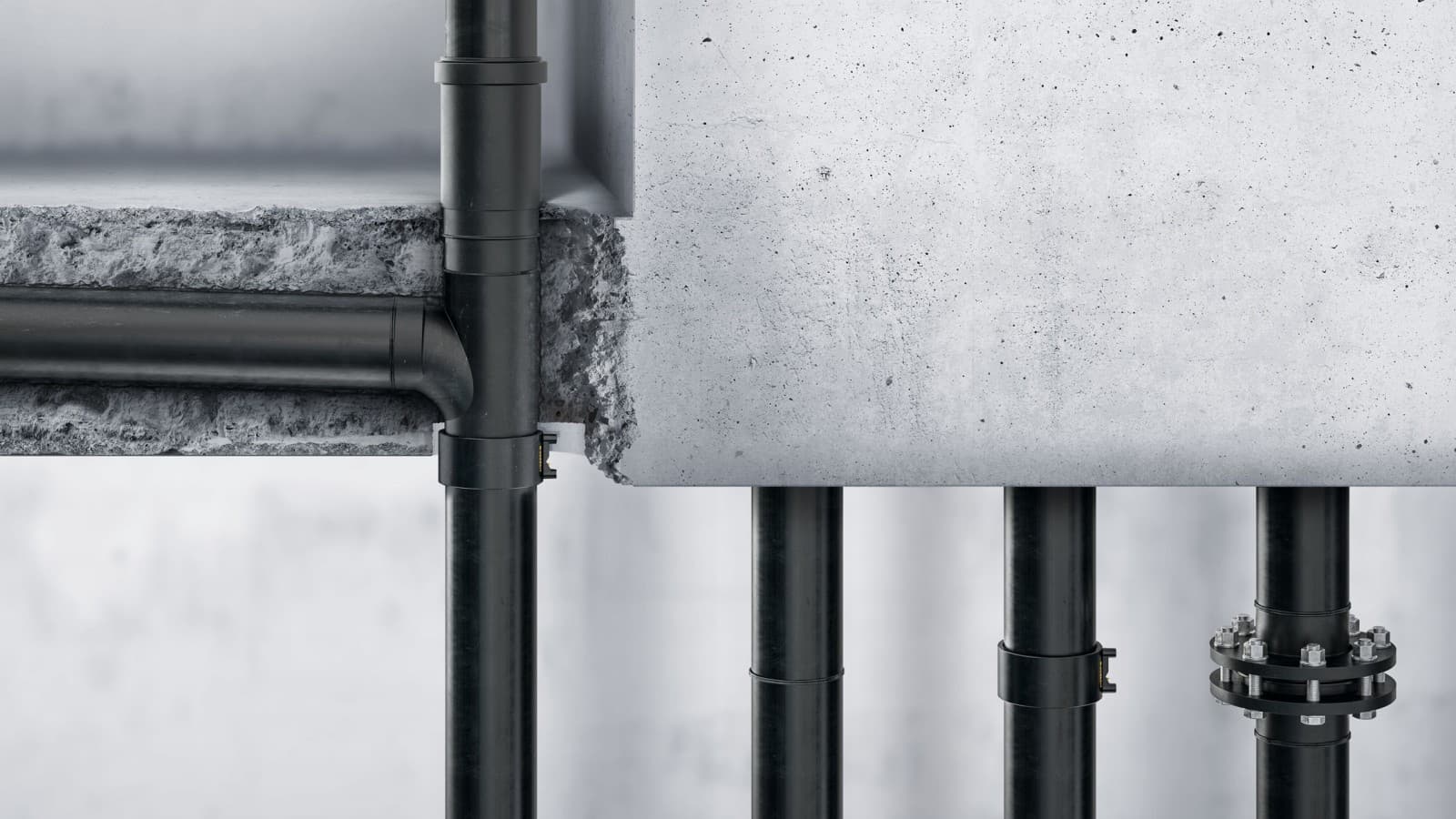

Thanks to their secure welding joints and robust material properties, Geberit PE and Geberit Silent-db20 drainage systems are suitable for laying in concrete.
Geberit also offers a full range of tools, welding equipment and additional accessories to support plumbers on site.
Tools for welded piping systems
Electrofusion tools
Available tools

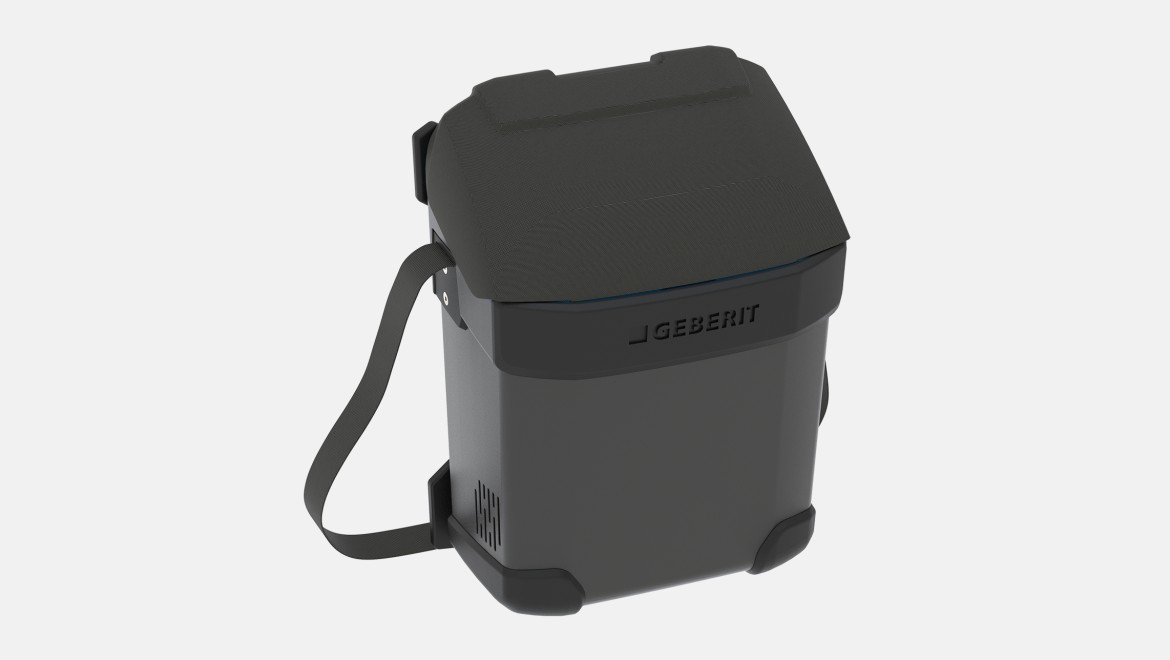

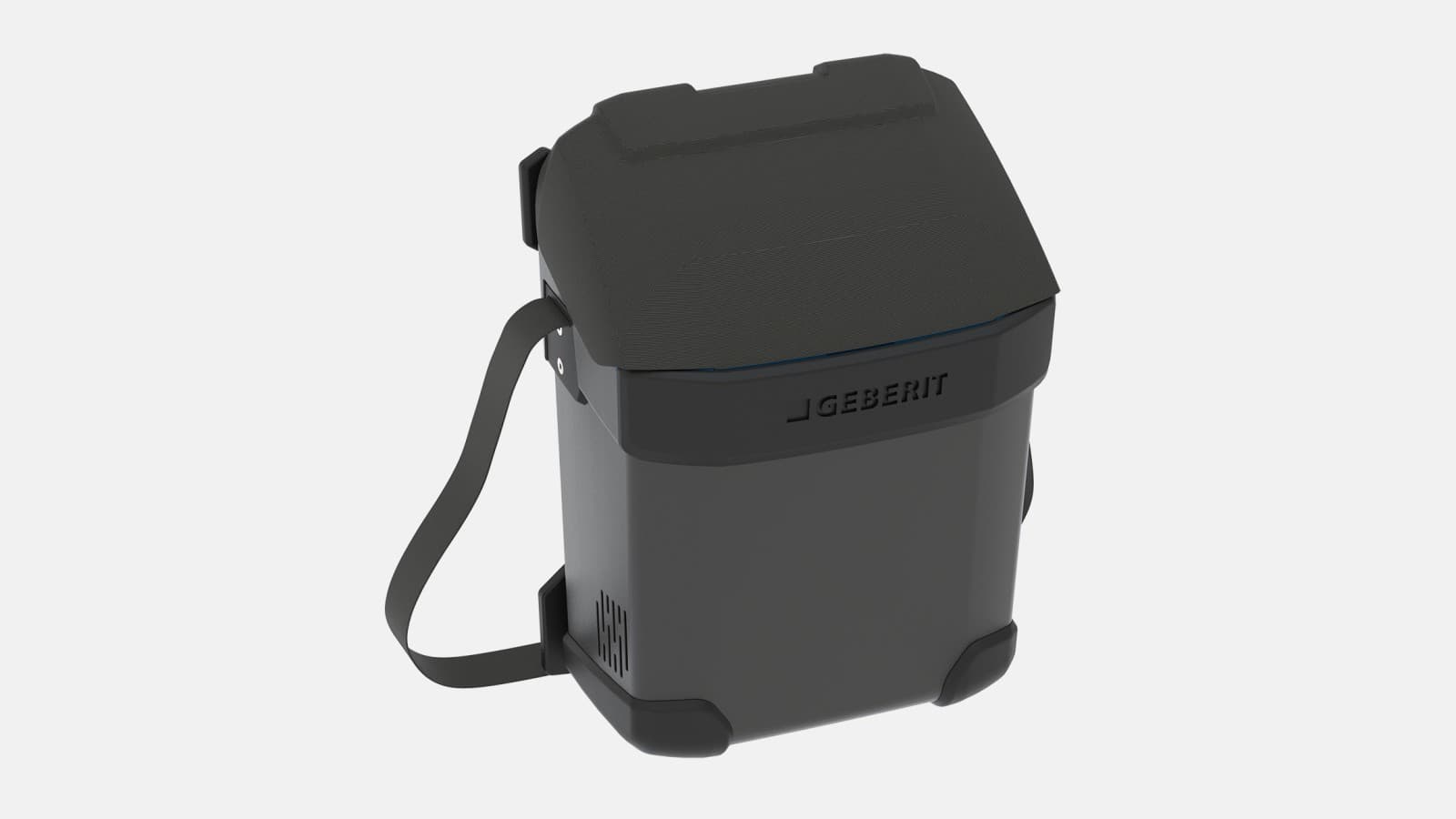

Geberit ESG 3
- A welding tool for all pipe dimensions from DN 40 to DN 300
- Simultaneous welding of up to three electrofusion couplings saves time
- Remote control facilitates installation work
- Robust design for everyday building site work
- Can be operated with a generator thanks to built-in overvoltage protection

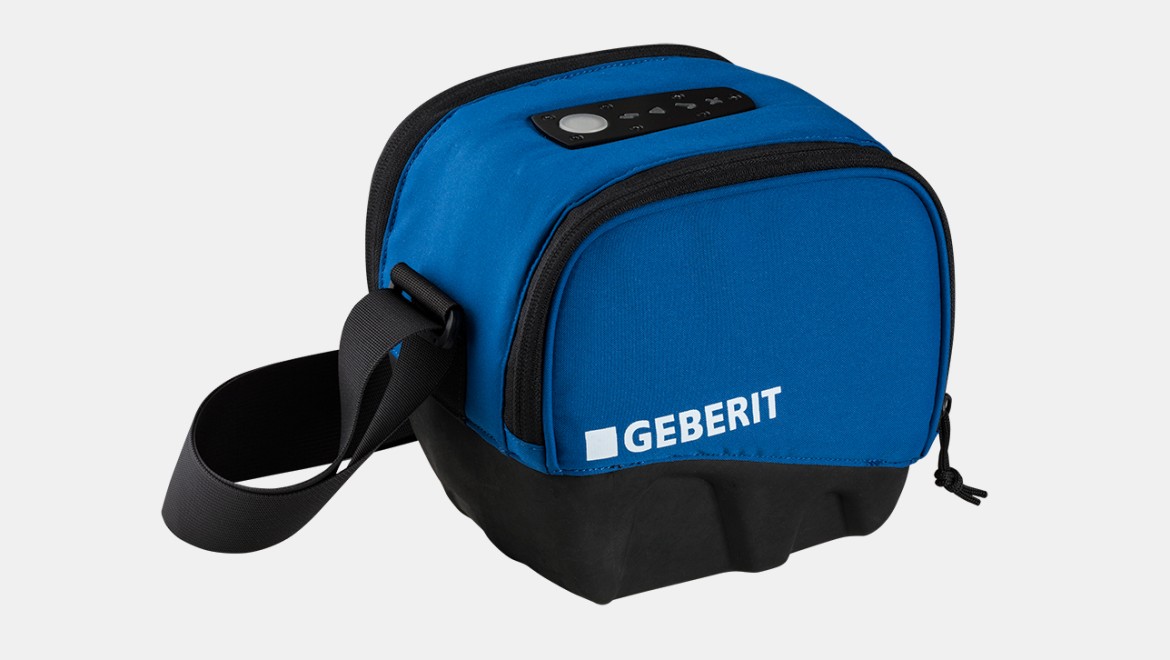

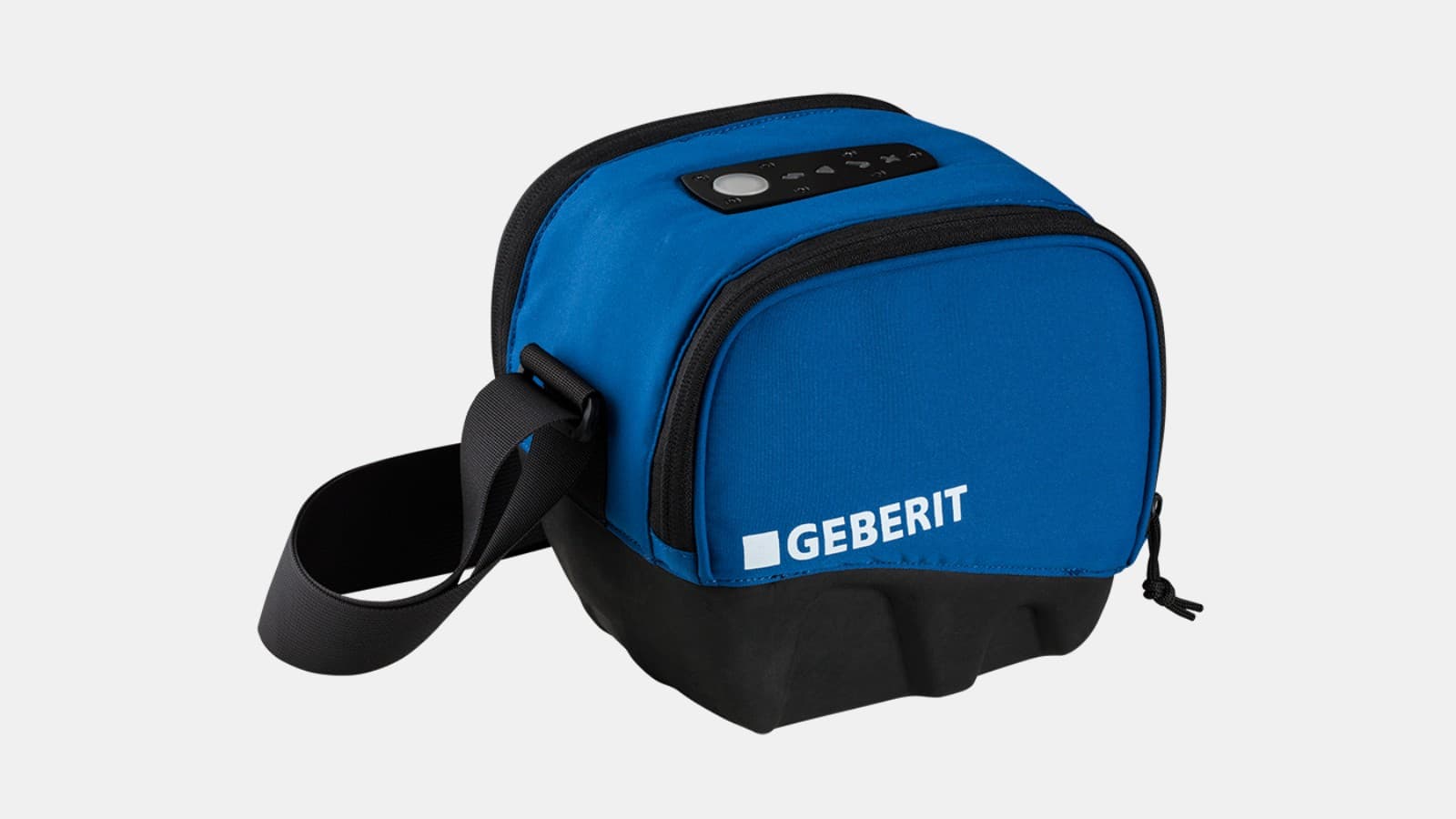

Geberit ESG light
- A lightweight and compact welding tool for easy handling on the building site.
Geberit ESG 3 and ESG Light side by side
| Geberit electrofusion tool | Geberit ESG 3 | Geberit ESG light |
|---|---|---|
| d40–d160 | ||
| d200–d315 | ||
| Electrofusion couplings | ||
| Electrofusion tapes | ||
| Electrofusion couplings with integrated thermal fuse | ||
| Quick exchange of the connecting cable for electrofusion coupling | ||
| Fall impact cushioning | ||
| Right angle plug | ||
| Remote control | ||
| Simultaneous welding of up to three electrofusion couplings | ||
| Ability to interrupt the welding procedure | ||
| Operation with power supplier (generator) | ||
| Weight in kg | 5.9 | 2.0 |
Butt-welding tools
Available tools
Geberit welding plate
- Three models to choose from: KSS-160 (d32–160 mm), KSS-200 (d32–200 mm) and KSS-315 (d200–315 mm)
- Use of the KSS-160 welding plate, either floor-standing or mounted on the work top
- KSS-160 model fits the Geberit Media and Universal welding machines
- KSS-200 and KSS-315 models can be used in the Geberit Universal welding machine
- Long service life and easy cleaning thanks to optimised polymer coating
- Ergonomic grip options for safe welding work
- Ready for operation at 220°C in just a few minutes
Geberit Media welding machine d40–160
- Robust base element for welding accessories up to d160 mm
- Retainer for welding plate support and plane
- Swivelling welding plate support
- Swivelling pipe support
- Movable work top
Geberit Universal welding machine d40-315
- Robust base element for welding accessories up to d315 mm
- Retainer for welding plate support and plane
- Swivelling welding plate support
- Swivelling pipe support
- Movable work top
- Hand wheel
Pipe working tools

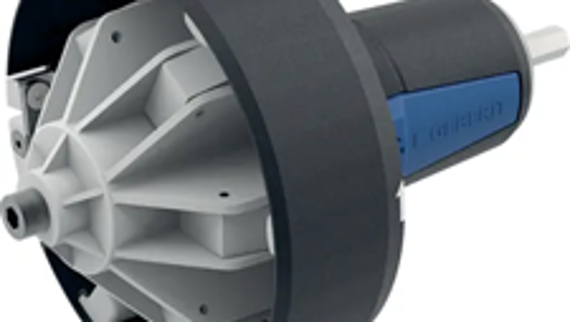

Geberit pipe scraper
A pipe or fitting can be prepared for welding in no time using a Geberit electrofusion coupling.
Features:
- For Geberit PE and Geberit Silent-db20
- Can be used with standard cordless drill drivers
- Ideal in narrow areas or areas that are difficult to access
- Scraping knife that can be quickly and easily replaced
- Available for various diameters: d56, d63, d75, d90 and d110
Geberit tools & accessories product range Articles, technical information and more
Do you have any questions? We are happy to help you.
Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.
